Other Products

Cutting-edge Ion Medical TechnologyAccurate Control SystemErgonomics Design

Short-term High-Tech products incubated during the long-term development of proton therapy systems

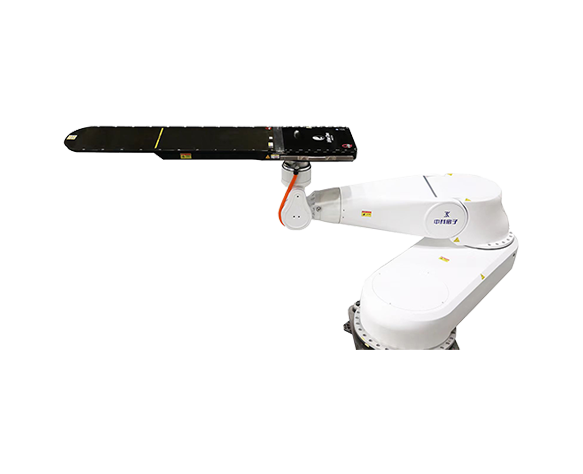

Patient Positioning System for Radiotherapy

Introduction

The patient positioning system for radiotherapy comprises a six-degree-of-freedom flexible robotic arm, a carbon fiber plate and a control system. It is the core component of radiation therapy systems, serving as an essential treatment platform for patients. Its primary function is to accurately position patients for treatment and, throughout the treatment process, assist patients in maintaining a fixed treatment posture to precisely align the irradiation field with the targeted lesion area, which facilitates the precise execution of the intra-target irradiation plan, effectively targeting and destroying tumors.

Advantages

User Friendliness
Strong load-bearing capacity
High Accuracy Positioning
Bionic Morphology Design
Superior Safety

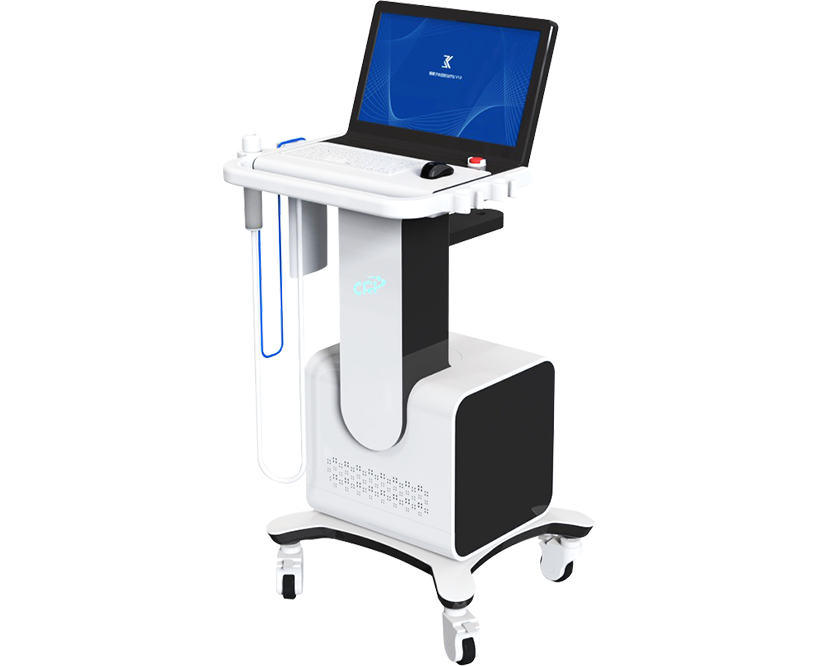

ST-P101 Plasma Skin Treatment Device

Introduction

The Skin Treatment-Plasma103 generates plasma by ionizing nitrogen, oxygen, and other gases through high-voltage electrodes. The active “micro-ion clusters” produced can deactivate disease-causing microorganisms, promote cell proliferation, and accelerate coagulation, consequently treating skin diseases caused by fungi and chronic wounds. Compared to traditional medical methods, plasma treatment not only avoids the side effects of medications on the human body but also exhibits higher cure rates and superior effectiveness.

Advantages

Plasma technology
Non-inert gas supply source
Multi-shaped detachable therapeutic head
Ergonomic design (comfortable to hold, easy to operate)
Double suspended excitation source
Plasma control system
Modern-tech-inspired outlook design
Integrated and mobile body structure

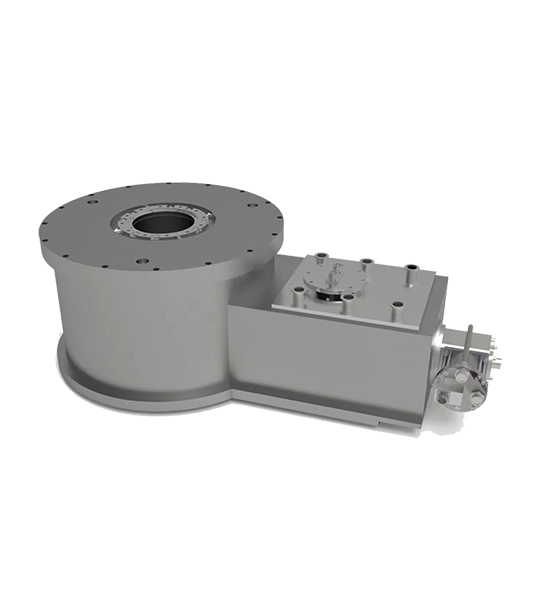

7 T Cryogen-free Superconducting Magnet for Gyrotron

Introduction

A gyrotron is a vacuum tube that generates high-power electromagnetic waves to heat plasma in a fusion device. Gyrotron superconducting magnets provide the required magnetic field for the gyrotron to constrain electron motion. This 170 GHz superconducting magnet system for the gyrotron uses conduction cooling, using only a GM Cryo-cooler as the cooling source, and can cooldown the magnet from room temperature to 3.6 K in 64 hours, with the highest magnetic field of the coil of nearly 9 T and the center field of up to 7.28 T. The room-temperature aperture diameter of 165 mm, and the deviation of the magnetic field axis from the geometric axis of the magnet is less than 0.08 mm, and it can provide the electron-constrained magnetic field for 170 GHz gyrotron.

Advantages

User Friendliness
High security
Low running cost
Stable magnetic field
Compatible to multiple systems

Parameters

Height of Croystat	395 mm	Size	1241.8 mm650 mm395 mm
Bore Tube Diameter	165 mm	Bz at Bore Tube	7.2 T
Magnetic Field Accuracy	>99.0% @Axial±440 mm	Time about cooldown from RT to 4K	< 65h

Patient Positioning System for Radiotherapy Plasma Skin Treatment Device 7 T Cryogen-free Superconducting Magnet for Gyrotron
